One color screen printing machine

Short Description:

This machine can directly fixed on the desk by screws ,it is mainly used in the one color screen printing.

  • Item: One color screen printing machine
  • Material: Stainless Steel and Metal
  • Size (pallet): 450*550*18 mm
  • Surface Treatment: Electrostatic spraying
  • Packing Size: 585*485*130 mm
  • Weight: 10 kg
  • Product Detail


    Product Tags

    The functions and features:

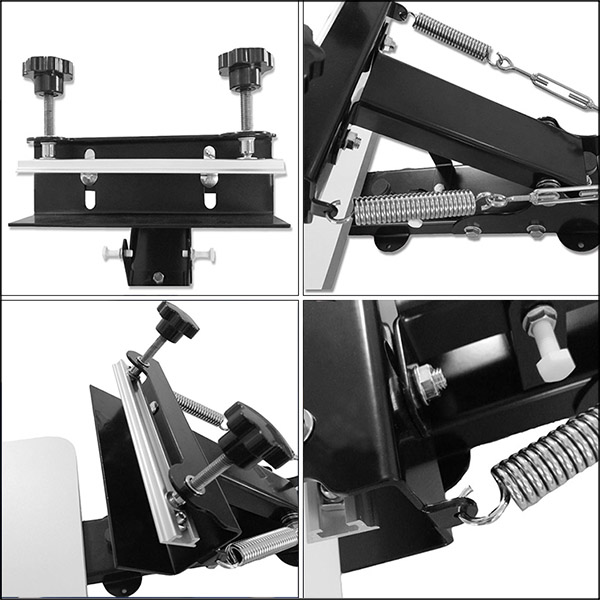

    •    According to the height of the substrate ,chuck of the screen frame can adjust 5cm from top to bottom.

    •    According to the needs, pallet can adjust 12cm from front to back.

    •    By adjusting the turn buckle to suit different weight screen frames.

    •    Fixing the screen frame adopts aluminium alloy pressing plate ,and it can make the screen frame more stable.

    •    Falling height of the screen frame can be adjusted by the support.

    •    This machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools.


    • The pallet is adjustable; It can be adjusted from forward to backward, from left to right.
    • It is overprintable which is especially suitable for printing onto T-shirt, pillowcase, bag, non-woven bags and so on.
    • Special design of spring devices in screen adjusting up and down makes it easier for the user operations according to the sizes and weight of the screen, which
    guarantees proper spring intensity to avoid squeegees expelling and inks splashing in higher intensity and screen unfixing because of higher weight of screen frames
    and squeegees in loose intensity.
    • Screen clamp can be moved up and down, which is suitable for screen frame within 1.8” (4.5cm) thickness.


    •  You should make sure all screws not fully tightened before installing completely.

    •  You can tighten all the screws after all part’s installation and the whole press is adjusted alright.
